[gPXE] How to modify the code can not get DHCP information on the2nd
sqwbwh
sqwbwh at 126.com
Fri Nov 5 12:01:14 EDT 2010
Shao Miller

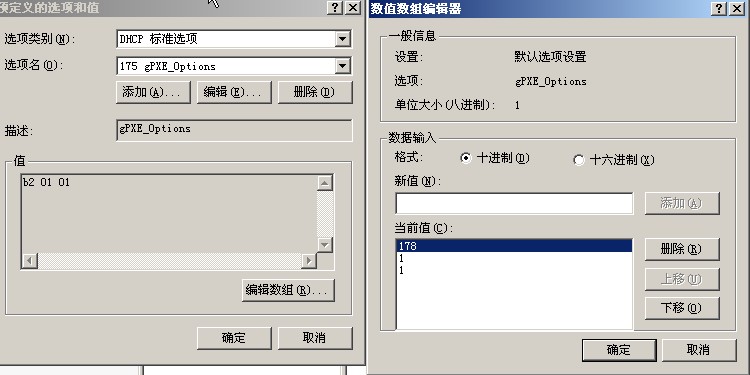

i do 3.jpg and 4.jpg
but no success
If the screenshots just fine.Like http://etherboot.org/wiki/msdhcp # setting_up_a_gpxe_encapsulated_options_on_windows_dhcp
The hyperlink is the CHAP user and password to understand
178 still do not understand.
-sqwbwh
At 2010-11-05 23:42:16,"Shao Miller" <Shao.Miller at yrdsb.edu.on.ca> wrote:
sqwbwh wrote:At 2010-11-05 23:13:19,"Shao Miller" <Shao.Miller at yrdsb.edu.on.ca> wrote:
sqwbwh wrote:At 2010-11-05 22:39:05,"Shao Miller" <Shao.Miller at yrdsb.edu.on.ca> wrote:
sqwbwh wrote:
How to modify the code can not get DHCP information on the 2nd?(GPXE only used to boot the system from ISCSI)
Is to remove this step.
net0: 00:0 c:: 29:08:11:35 on UNDI-PCI02: 01.0 (OPEN)
[Link: up, TX: 0 TXE: 0 TX: 0 rxe: 0]
DHCP (net0 00:0 c: 29:08:11: d5 ).... ok
net0: 192.168.0.202/255.255.255.0
This can speed up boot speed.
Normal GPXE run to start from the boot system tftp process takes about 8 seconds or so
If removed from the second time for DHCP information will only need a very quick 2.5 seconds.
Miller, Shao wrote:
You most likely want the 'use-cached' option. It is DHCP gPXE encapsulated option number 178. Or, you can set it in an embedded script:
#!gpxe
set use-cached 1
autoboot
Gene Cumm wrote:
What file and version are you using? It sounds as if you're using
undionly.kpxe or a .pxe file. undionly.kkpxe will skip this second
DHCP request but certain hardware/firmware has issues with this,
assuming you trust the stability of your OEM's PXE/UNDI stack.
sqwbwh wrote:
Shao Miller
The method is successful.
Thank you
sqwbwh wrote:
yes
thankyou Shao Miller
Your method is useful :)
Miller, Shao wrote:
You’re quite welcome, and thanks for including the list on your other reply. :) Have a nice day. - Shao
sqwbwh wrote:
Shao Miller
1:
i use :
" set it in an embedded script:
#!gpxe
set use-cached 1
autoboot
it's good
2:
"It is DHCP gPXE encapsulated option number 178"
Specifically to ask how to use this method?
What can explain it in detail?
thank~you
I enjoy using the search feature at the gPXE (Etherboot) wiki. Please see:
http://etherboot.org/wiki/doku.php?do=search&id=encapsulated&fulltext=Search
http://etherboot.org/wiki/msdhcp
http://etherboot.org/wiki/dhcpd
Shao Miller
Use the search function.
Use hyperlinks to provide you with three options for the introduction of 178 not found.
178 keyword search does not find use-cached search did not find the relevant presentation.
Hehe.Could you give me the answer it?.English is almost a maze for me
I'm afraid that I'm not sure how to explain gPXE encapsulated options any better than they are explained in the wiki. DHCP option 175 should be a string of bytes. Within that byte sequence, there are sub-options. 'use-cached' is sub-option 178. So your DHCP option 175 could look like:
0xB2 0x01 0x01
where,
0xB2 : DHCP gPXE encapsulated option 178.
0x01 : The encapsulated option's value occupies 1 byte.
0x01 : The encapsulated option's value is 1 (true).
I do not know which DHCP service you use, so I do not know how you can reconfigure your service to give PXE clients this 'use-cached' option via DHCP.Shao Miller
dhcp server is msdhcp
Use 1781.jpg and 1782.jpg is set.Enable use-cached did not succeed
Picture shows what can it?
Those screen-shots show a DHCP option 178, not a DHCP gPXE encapsulated option 178.
You need DHCP option 175. _Inside_ option 175, you need to have gPXE encapsulated option 178. See:
http://etherboot.org/wiki/msdhcp#setting_up_a_gpxe_encapsulated_options_on_windows_dhcp
It shows exactly how to create the DHCP gPXE encapsulated options. 175 is a _container_. 178 ('use-cached') goes inside that container. Change to option 175 and you will be fine, since your bytes are exactly as I explained above: Option 178, 1 byte long, value 1. All gPXE encapsulated options go inside option 175. 0xB2 means 178.
Please remember to carbon-copy the list using Reply-All.
- Shao Miller
