[gPXE] iscsi boot fails
Schafer, Christopher L CTR USAF AFMC AFRL/RDSM
Christopher.Schafer.CTR at maui.afmc.af.mil
Tue Dec 28 15:42:35 EST 2010
If this is the right forum.
I have the following.
Linux tftp server serving gpxe
-r--r--r--. 1 nobody nobody 299862 Dec 28 09:32 gpxe1.kpxe
[root at netbootserver tftpboot]# ls -al boot
total 12
drwxr-xr-x. 2 root root 4096 Dec 28 09:41 .
drwxr-xr-x. 3 root root 4096 Dec 28 09:40 ..
-r--r--r--. 1 nobody nobody 101 Dec 28 09:41 pxeboot.com
I have tested tftp and these files transfer correctly.
[root at netbootserver tftpboot]# cat /var/lib/tftpboot/boot/pxeboot.com
#!gpxe
#!gpxe
sanboot
iscsi:10.0.2.11::::iqn.1986-03.com.sun:02:97bebe5c-1b1d-eb86-e256-85586d5e09
7e
And it appears this successfully downloads.
If I boot win 7 on the local disk I can access the iscsi lun with no
problems. I imaged the iscsi lun from this running win 7 image

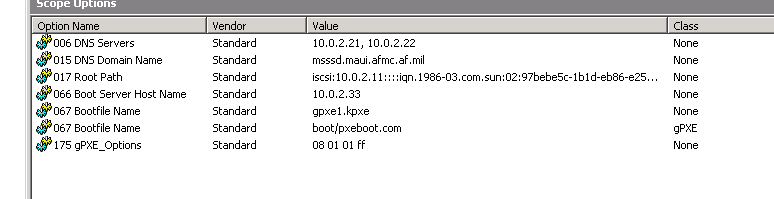

Below is my DHCP config. I have removed the route as these machine are all
on the same subnet.
Problem is I get the pxeboot.com file loaded and it just sits there. Looks
like there is network traffic but my Sun NAS is not seeing any iSCSI
traffic?
Thoughts?
-------------- next part --------------
An HTML attachment was scrubbed...
URL: http://etherboot.org/pipermail/gpxe/attachments/20101228/251c13da/attachment-0001.html
-------------- next part --------------
A non-text attachment was scrubbed...
Name: not available
Type: image/png
Size: 10651 bytes
Desc: not available
Url : http://etherboot.org/pipermail/gpxe/attachments/20101228/251c13da/attachment-0001.png
